7 Tips for Buying Carbon Fiber Sheets

carbon fiber sheets can look similar at a glance, yet perform very differently once cut, drilled, or loaded. Before choosing a panel, consider what it must do: cover a lightweight enclosure, support a fixture, or provide a stiff surface. The intended use shapes the right material, thickness, finish, and price. Appearance alone is not enough.

A useful buying decision starts with the details. Check the sheet dimensions and thickness, then confirm the fiber weave and surface finish. Ask whether the panel is solid carbon fiber or a decorative layer over another material. Review product data for resin type, weight, and stated mechanical properties. If those details are missing, pause and ask the supplier. Small checks matter.

Also consider how the sheet will be handled. A glossy panel may show scratches, while a textured finish can hide everyday marks. Tight tolerances may require careful cutting and suitable tooling. Shipping protection matters, too; a chipped corner can make an otherwise sound sheet difficult to use. It is easy to focus on the weave pattern and overlook these practical points. That is a common buying mistake.

The seven tips in this guide help compare options with a clearer purpose. They cover fit, construction, performance, finish, fabrication, supplier information, and overall value. No single sheet suits every project. When specifications are unclear, a little more research is usually worth the effort.

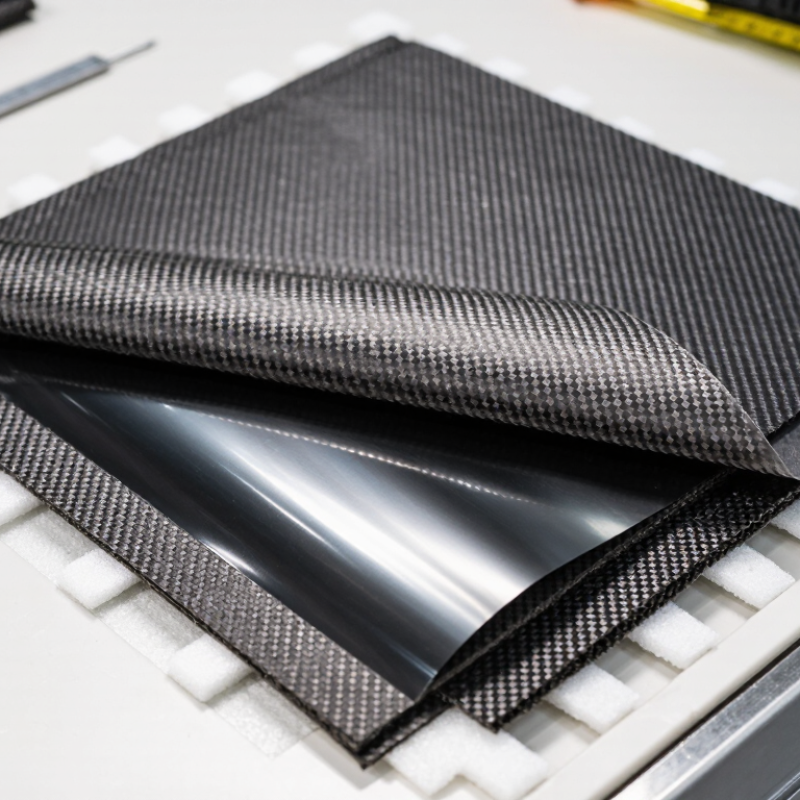

7 Tips for Buying Carbon Fiber Sheets
Table of Contents [Hide]
1 Understand Carbon Fiber Sheet Types and Their Intended Uses
2 Match Sheet Dimensions, Thickness, and Strength to Your Project
3 Compare Weaves, Resin Systems, and Surface Finishes
4 Check Product Specifications, Quality, and Certification
5 Evaluate Suppliers, Pricing, and Shipping Before You Buy

Understand Carbon Fiber Sheet Types and Their Intended Uses

Carbon-fiber sheets are not one material in a single form. Unidirectional laminates place most fibers along one axis, making them useful when loads follow a known direction. Woven sheets spread reinforcement across two directions and resist handling damage better, though their crimped fibers can reduce stiffness. Quasi-isotropic layups use several orientations for more balanced loads. A common mistake.

The CMH-17 Composite Materials Handbook emphasizes that properties depend on the full laminate, not just the fiber label. Typical cured carbon/epoxy panels have densities around 1.5–1.6 g/cm³; aluminum is about 2.7 g/cm³, according to engineering materials data. That weight advantage can suit covers, brackets, and lightweight panels, but it does not make every sheet a safe structural replacement. Check thickness, resin system, fiber direction, and test data for the actual panel.

Match construction to the job. A thin decorative twill sheet may look like a woven structural panel, yet its finish says little about load capacity. For a flat equipment cover, a balanced woven laminate may be practical. For a beam or plate loaded mainly in one direction, a specified unidirectional layup may fit better. Also confirm whether the sheet is cured, prepreg, or intended for bonding; those forms need different handling. I would not choose by appearance alone. The datasheet matters.

Match Sheet Dimensions, Thickness, and Strength to Your Project

Match the sheet to the part’s real footprint, not just its longest edge. Measure the finished shape and leave room for trimming, holes, and a safe edge margin. A larger sheet can reduce joints, but it may also create more waste. Check the supplier’s stated usable area; cut edges and protective film can affect the final dimensions.

Thickness alone does not tell you how strong a sheet will be. Fiber direction, resin, and layer arrangement matter too. ASM Handbook property tables place many carbon-fiber/epoxy laminates near 1.5–1.6 g/cm³, but that figure describes density, not load capacity. For strength claims, look for test results tied to a specific layup and test method. ASTM D3039/D3039M covers tensile testing of polymer-matrix composites. Ask for the test direction and sample thickness. Small details matter.

For a flat cover, thin sheet may be enough; a bracket carrying repeated loads needs more careful design. Compare the load, span, mounting points, and likely bending before choosing thickness. A stiff sheet can still fail around a drilled hole. I have seen that overlooked. If the project is safety-critical, get a qualified engineer to review the design rather than relying on a generic strength number.

Compare Weaves, Resin Systems, and Surface Finishes

When comparing carbon-fiber sheets, inspect the weave, not just the glossy face. Plain weave holds its shape well during handling, but its frequent crossings can make draping around tight curves harder. Twill often conforms more easily and shows a diagonal pattern; it is not automatically stronger. The ASM Handbook, Volume 21, gives typical carbon-fiber densities of roughly 1.75–1.93 g/cm³. That figure describes the fiber, not the finished sheet, whose resin content and layup also affect weight.

Check the resin system against the part’s real conditions. Epoxy is common in structural laminates, but cure requirements and glass-transition temperature vary by formulation. Ask for the technical data sheet and test results for the actual laminate, rather than relying on a generic resin label. ASTM D3039 describes a standard tensile-test method; a supplier’s test report should identify the specimen and layup.

Small detail. A smooth, clear finish can reveal the weave, while a painted or coated surface may hide defects. Still, appearance alone cannot confirm sound bonding or consistent thickness. I would compare sheet thickness, fiber orientation, resin system, and documented test data before choosing.

Check Product Specifications, Quality, and Certification

Carbon fiber sheets can look identical while differing in fiber grade, weave, resin, and cure. Grand View Research estimated the global carbon fiber market at USD 5.48 billion in 2023 and projected 11% annual growth through 2030. That market forecast does not verify any individual sheet. Check the datasheet for thickness tolerance, areal weight, fiber direction, and resin system. Ask how values were tested. Numbers matter.

For structural use, request lot-specific tensile or flexural test results, with methods such as ASTM D3039 or ASTM D7264 stated clearly. Compare test direction and specimen conditions; a strength figure without them is hard to interpret. Ask for a certificate of analysis linking the sheet to its production batch. A small mismatch between nominal and measured thickness can affect fit, bonding, and stiffness. It is easy to overlook.

Check what a certificate actually covers. ISO 9001 concerns an organization’s quality-management system; it does not certify every sheet’s performance. Request traceability records, inspection criteria, and the issuer’s scope. For aerospace supply chains, verify whether relevant approvals and documentation are required for your application. Ask for records. If a seller provides only a polished brochure, pause and request evidence. A logo alone proves little.

7 Tips for Buying Carbon Fiber Sheets - Check Product Specifications, Quality, and Certification

Tip What to Check Useful Specification or Evidence Why It Matters
1. Confirm the sheet construction Ask whether the sheet is solid laminate, a carbon-fiber face sheet over a core, or another construction. Check fiber type, resin type, and manufacturing process. A written construction description; for laminates, the ply count and layup sequence (for example, 0°/90°) where available. Sheets with similar appearances can have different stiffness, strength, weight, and through-thickness behavior.
2. Match thickness and dimensions to the design Verify nominal thickness, length, width, flatness, and stated tolerances. Do not assume a quoted size is an exact finished size. A dimensioned drawing or datasheet with units and tolerances; request measured values if a close fit is required. Dimensional variation can affect fit, assembly, and the final part's performance.
3. Check the mechanical data Review tensile, flexural, and, when relevant, compressive properties. Check the test direction, specimen construction, conditioning, and test method. Test reports tied to the actual material system. ASTM D3039 is commonly used for tensile testing of polymer-matrix composites; ASTM D7264 and ISO 14125 cover flexural testing of fiber-reinforced plastic composites. Composite properties depend on layup and test direction, so values are meaningful only with their test conditions and method.
4. Inspect surface and edge quality Look for visible cracks, delamination, blisters, resin-rich or dry areas, scratches, and damaged edges. Clarify the finish on both sides. Inspection criteria, clear product photos, and an agreed process for reporting defects on delivery. Surface defects may affect appearance, bonding, machining, or structural use.
5. Match the resin to the service environment Check the operating temperature range and resistance to moisture, chemicals, UV exposure, and heat, as applicable to the intended use. Resin identification and relevant test data or written service limits; ask whether a protective coating is needed. Environmental exposure can affect the resin and the performance of the composite, even when the carbon fibers remain intact.
6. Verify traceability and quality documents Ask for a lot or batch identifier and documentation that links the supplied sheets to the stated specifications. A certificate of conformity, batch inspection record, or test report, as appropriate. Check document scope, dates, and material identification. Traceable records help confirm what was supplied and support incoming inspection or later investigation.
7. Check certification claims and request a sample Confirm whether a claimed certification applies to the product, the production facility, or the quality-management system. Evaluate a sample before a large order. A current certificate with its scope and issuing body; note that ISO 9001 certifies a quality-management system, not the performance of an individual sheet. Clear scope prevents confusion about what a certificate verifies, while a sample lets you assess fit, finish, and suitability.

Specifications and acceptance limits vary by material construction and application. Compare products using the same test methods and conditions, and confirm critical requirements with the supplier before ordering.

Evaluate Suppliers, Pricing, and Shipping Before You Buy

A carbon-fiber sheet quote is only useful when its specifications match your job. Compare fiber type, weave, thickness, resin system, surface finish, and stated tolerances. Ask suppliers for a technical data sheet, batch traceability, and details about inspection. A glossy sample can look convincing; cut edges may tell a different story. Check those, too.

Grand View Research estimated the global carbon-fiber market at USD 6.36 billion in 2023 and projected an 11.0% compound annual growth rate from 2024 to 2030. This broad market estimate is not a sheet-price benchmark. Use it as context, then request like-for-like quotes. Separate material cost from cutting, minimum order quantities, taxes, and certification fees. Small orders can carry surprisingly high setup costs.

Shipping changes the real price. Ask how sheets will be protected from bending, impact, and moisture, and request packed dimensions and shipment weight. Large panels may trigger oversized-freight charges, even when they are light. Confirm the dispatch date, estimated transit time, insurance, and who pays import charges where applicable. Get the landed cost in writing. A supplier’s estimate may still miss a carrier surcharge, so leave room for that uncertainty.
